α Angle |
（m/s） Speed |
H (mm) Rise |
A (mm) Step width |
(mm) Span |

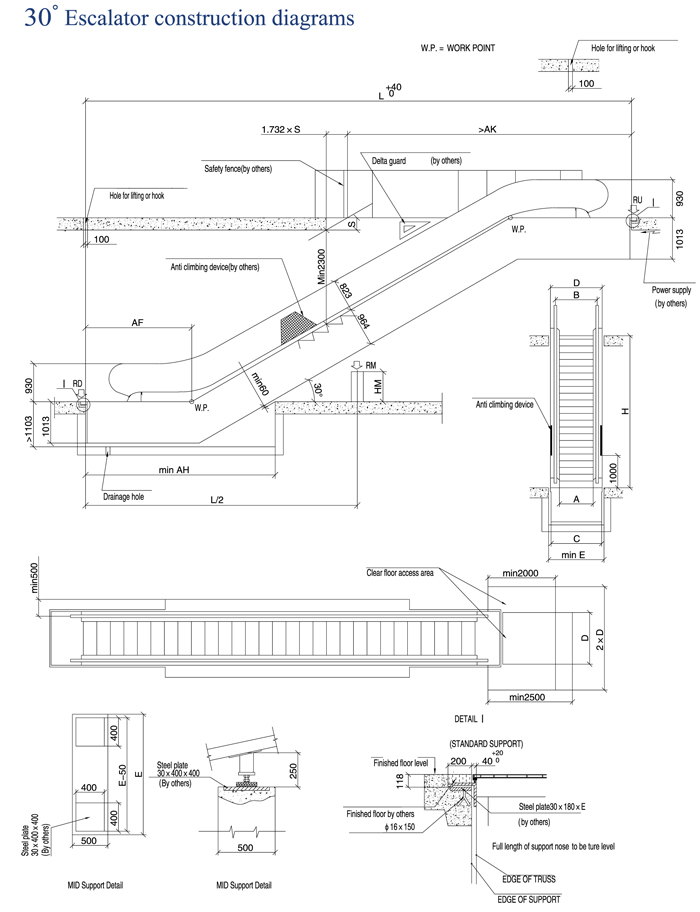

Other dimensions(mm) | Support reaction force (KN) | ||||||
| min AH | AK | B | C | D | E | RU | PD | |||||
| 30° | 0.5 | H≤6000 | 1000 |
1.732H + 4765 |
4240 | 6550 | 1237 | 1500 | 1530 | 1640 |
4.96L + 17 |
|
| 1037 | 1300 | 1330 | 1440 |
4.31L + 18 |
||||||||
| 600 |
1.732H + 5265 |
7050 | 837 | 1100 | 1130 | 1240 |
3.661L + 27 |
|||||
| 6000≤H≤12000 | 1000 |
1.732H + 55565 |
4640 | 6950 | 1237 | 1500 | 1530 | 1640 |
2.3L + 13.6 |
7.16L + 49 |
||
| 1037 | 1300 | 1330 | 1440 |
2.02L + 13.2 |
6.33L + 4.8 |
|||||||
